HR-BSO1

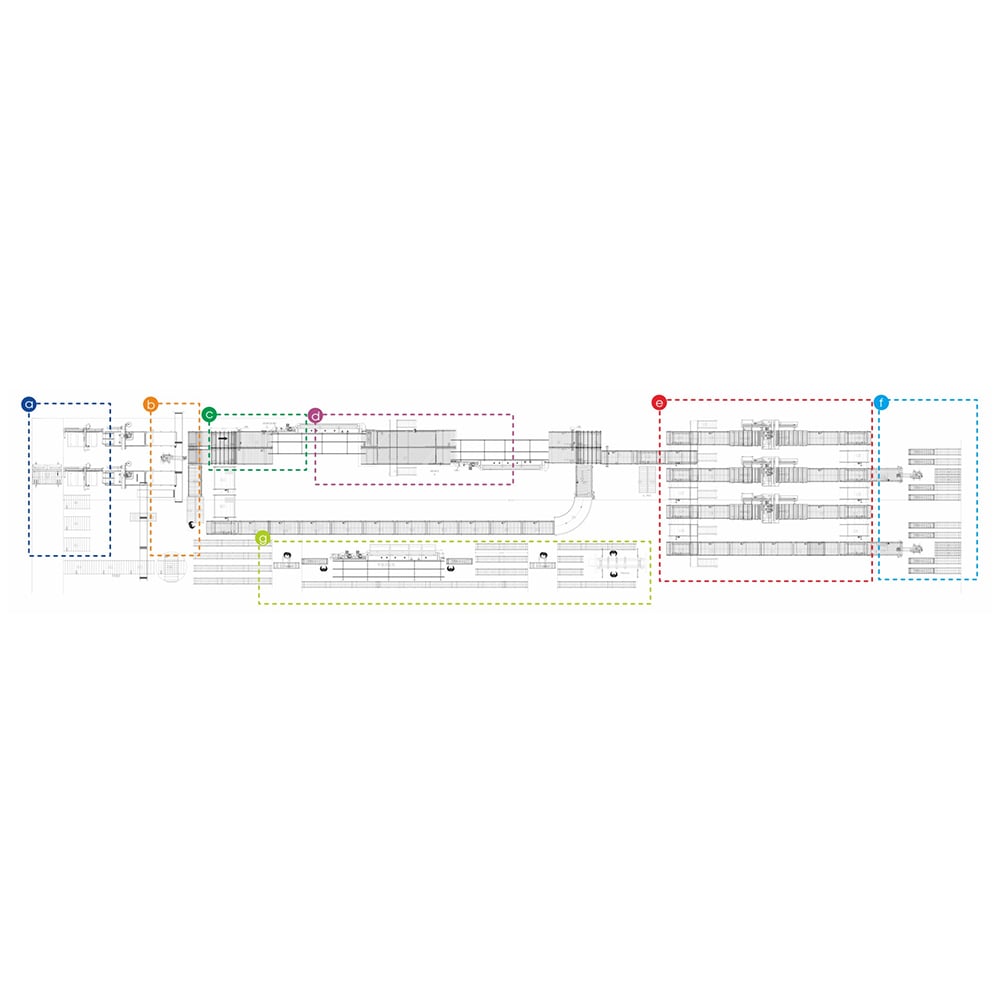

Panel furniture unmanned production line
Capacity output: 600 Square/day
Staffing: 2 persons
Project period: 60 days
Scope of application: panel furniture, office furniture, cabinet, wardrobe
Process Description:According to the MES system order cut therequired specifications
Optional equipment solution:CNCone-to-two connection, robotautomatic feeding, automatic labeling

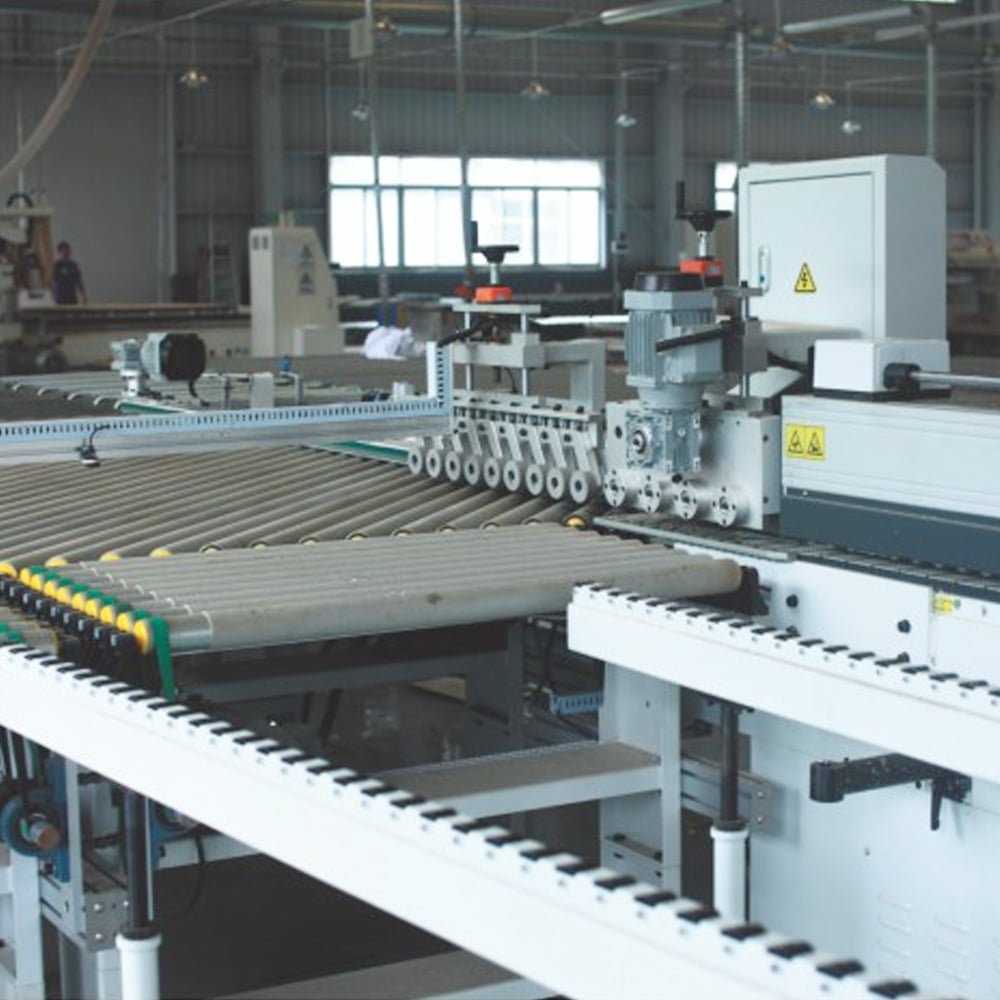

Process Description: After the edge banding of the plate is completed,it wil automatically enter the
six-sided drll connection to reallzeunmanned operation
Optional equipment solution: Slx-sided driing in and out of the materialroller table, translational
conveyor
Process Description:Complete the four-side sealing of the panelthrough automatic connection, saving labor,
reducing handling, andimproving efficlency to 200%
Optional equipment solution: Edge banding machine left and rightconnection, edge banding machine rotation
line

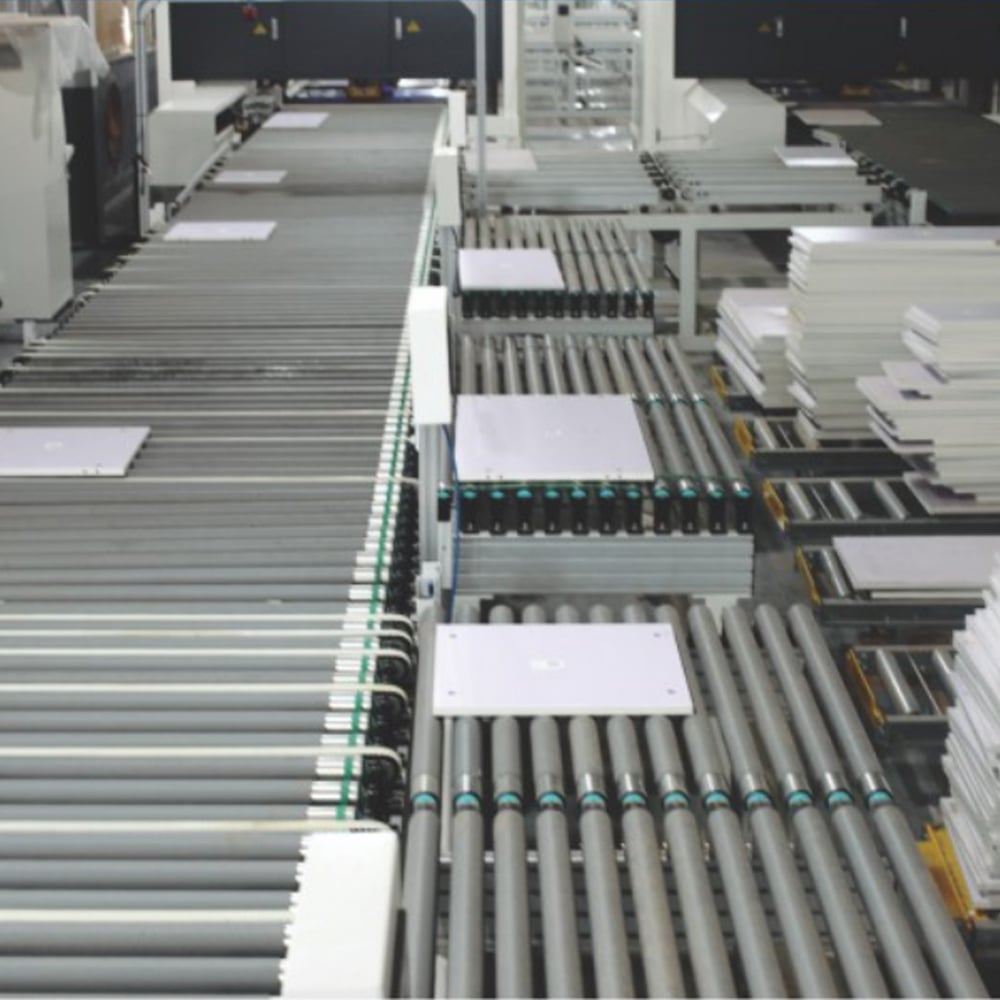

Process Description: After the plate ls drilled, it ls automatically sorted topackages or orders through
the sorting system according to the order
Optional equipment solution: Power conveyor roller table,
franslationconveyor
