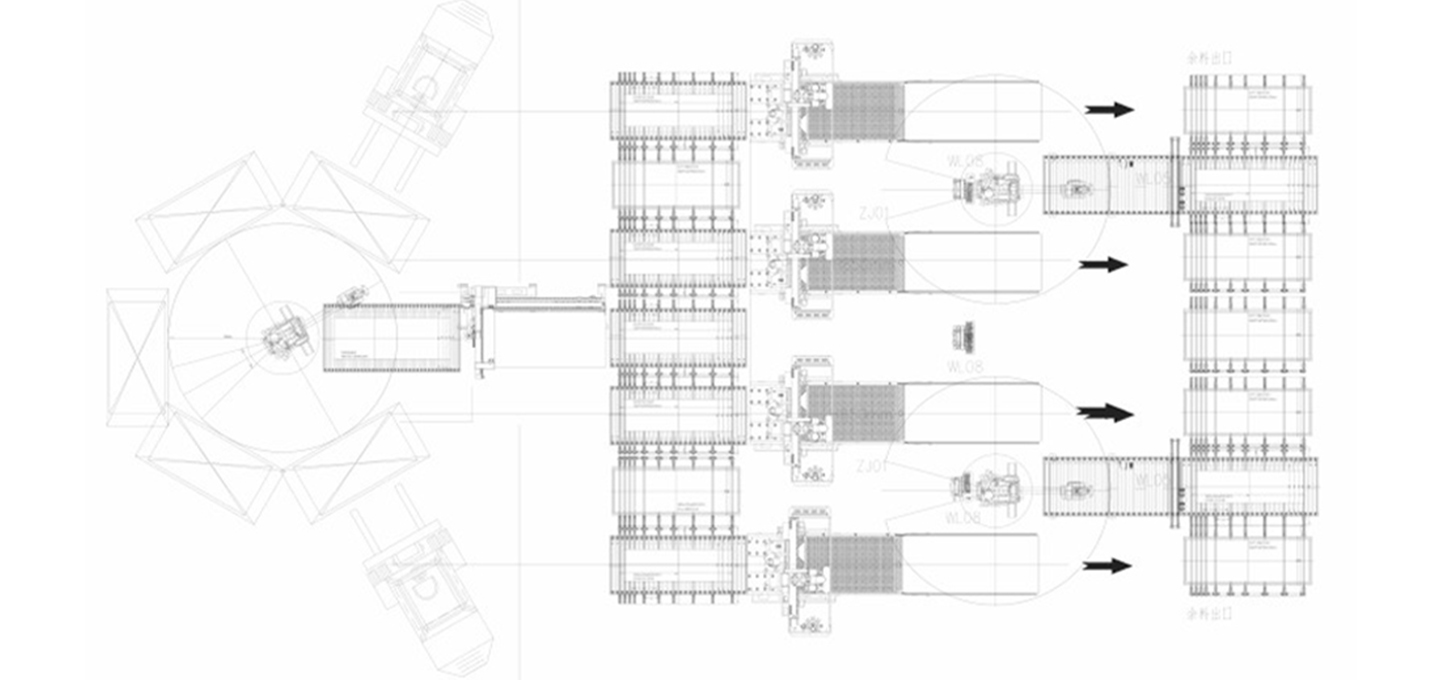

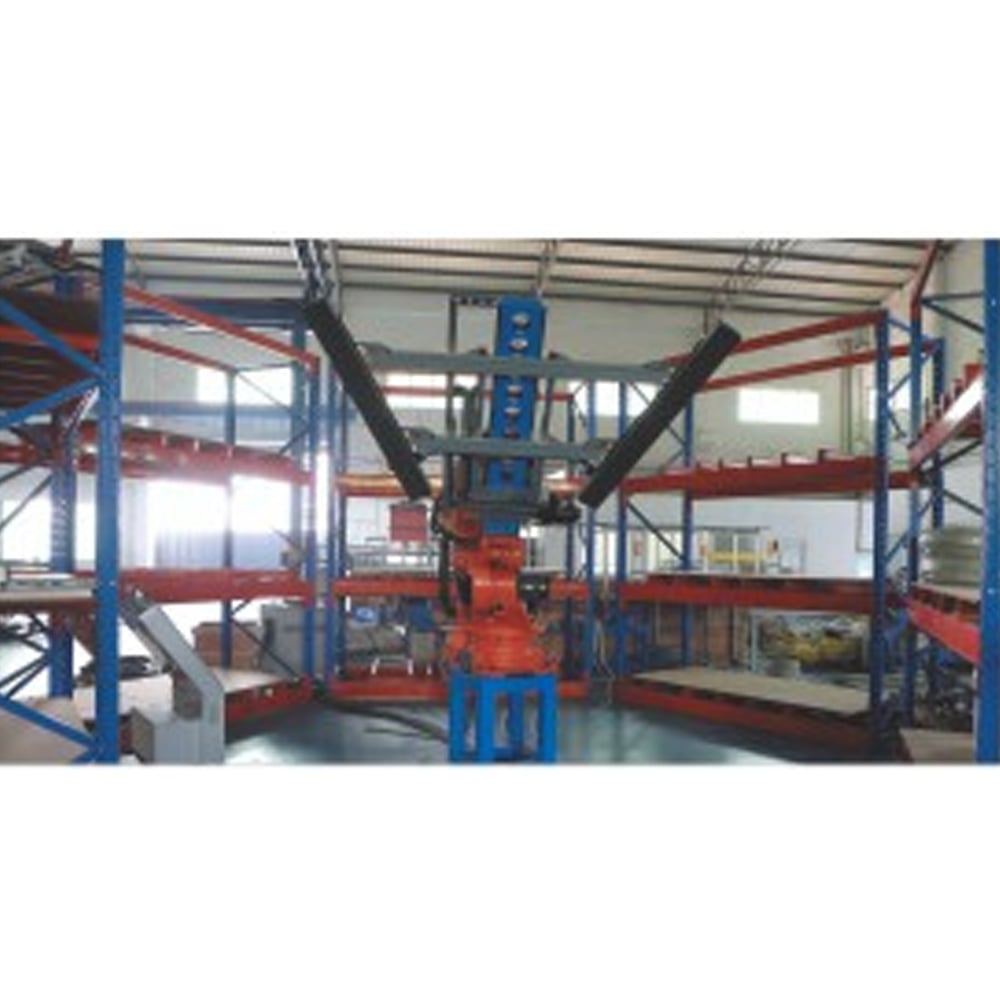

Stereopanel bin

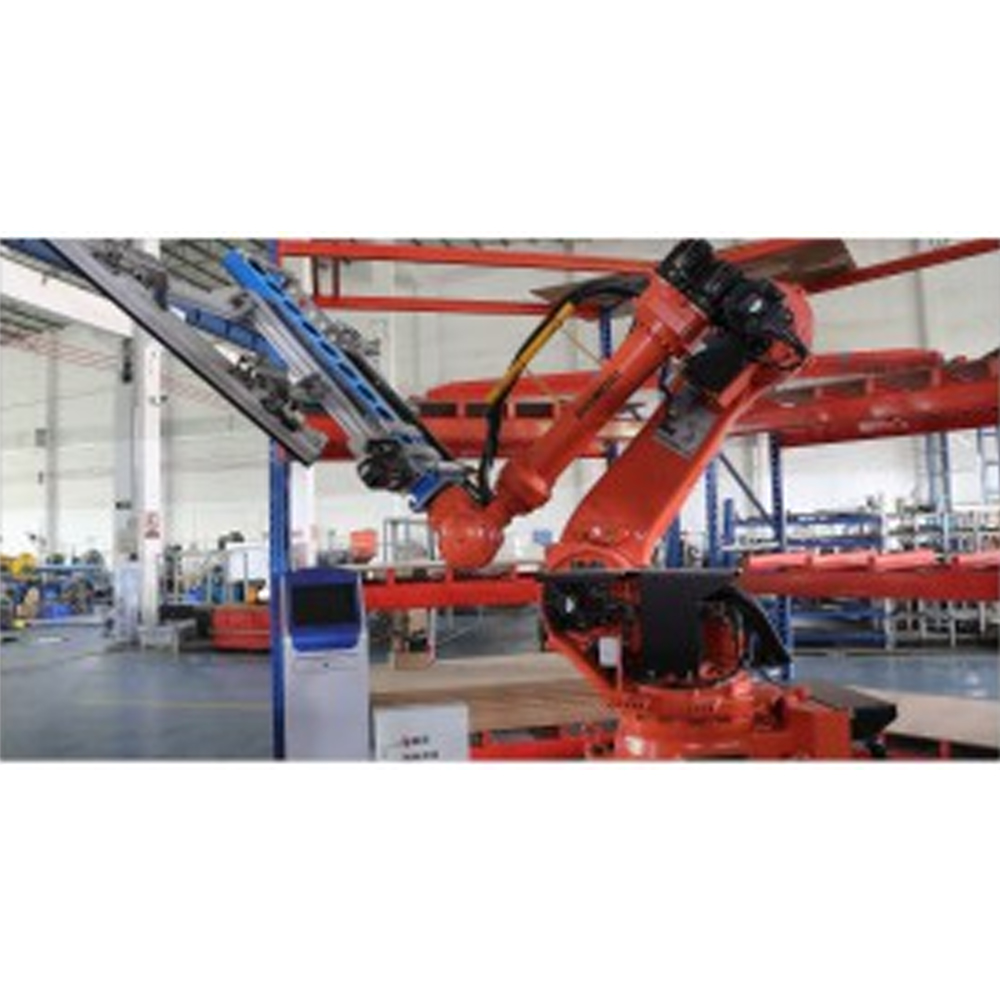

1.Selection of stereo panel bin robot is modem H$-220 robot
2.Stereo bin can be equlpped with 15-30 color panels
3.Manlpulator takes out and dlscharges plates according to ERP productlon schedule
4.A total of 2 engraving machines with one sticker
5.After discharging from silo, labeling is carled out
6.After labeling, shunt to coresponding engraving machine for blanking
7.Stereo panel warehouse can reallze the management of panel warehouse and directlyconnect with production order
8.Increase plate utilization rate by more than 3%9.Upgradable Manual Blanking Palletizing
| Main parameters | |||
| Workpiece length | 2440-2800mm | Max.Load | 50kg |
| Workpiece width | 1220mm | Speed | 10-20(M/min) |
| Workpiece thickness | 18~25mm | Power | 83kw |
